Product Description

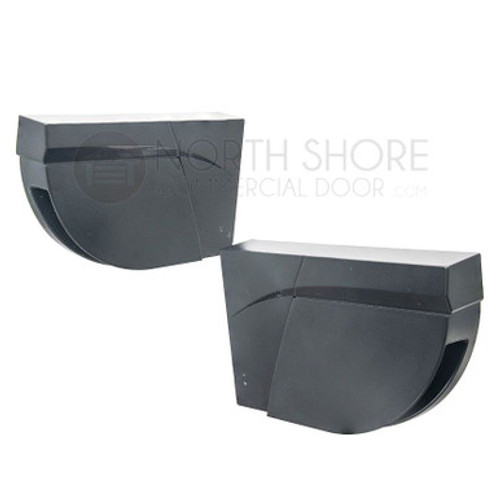

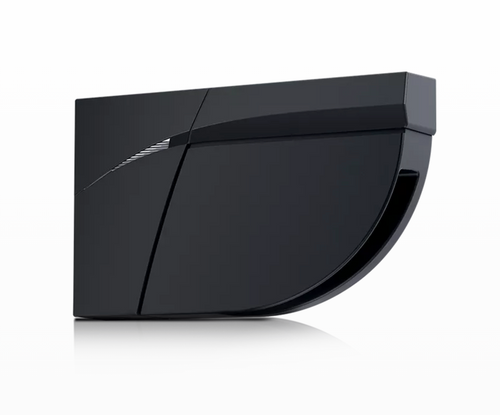

LZR-FLATSCAN SW STAND-ALONE, DOOR MOUNTED SAFETY SENSOR FOR SWING DOORS is an open-close and safety device for mechanically-operated swinging pedestrian doors. Device works using lasers and internally-housed reflector. Broadcasts a 170-point laser arc that identifies motion and presence and responds in less than 1 second. High-tech, low-tech or no-tech, North Shore Commercial Door has the products, people and the know-how to help you get the job done. Order today!

Features and Benefits
  • Lasers allow for functioning with various types of flooring as carpet, reflective flooring, or wet surfaces
  • Motion-sensing device uses IR beams for smooth, automatic open-close action of single or double doors
  • updated safety feature pinch-zone extends beyond moving edge of door (halts door movement if object interrupts hinge-side movement of door)
  • Easy-Installation Features
  • -4-paired wires data and power-source
  • -4 binary DIP-switch programming of funtions
  • -service-mode delay option allows maintenance or adjustments without complete disassembly
  • -tri-color LED learning/programming/light

  • Specs
  • Max. detection range: 4 m (diagonal) with reflectivity of 2% (i.e. : at W = 1.5m -> max. H = 3.7 m)
  • Typ. min. object size 10 cm @ 4m (in proportion to object distance, DIP 2 = ON
  • Door wing safety 2 cm @ 4m (in proportion to object distance, DIP 2 = ON)
  • Testbody: 700 mm 300 mm 200 mm (testbody A according to EN 16005 & DIN 18650)
  • Supply Voltage 12-24 V DC +- 15%
  • Power Consumption ≤ 2 W
  • Response Time: Door wing safety: max. 50 ms / Pinch zone safety: max. 90 ms
  • Output 2 electronic relays (galvanic isolation - polarity free)
  • Max Switching Voltage 42V AC/DC
  • Max Switching Current 100 mA


  • Available in Eco-Sustainable/Low-Energy Single Door (right or left leaf) This solution can be used as a reactivation sensor on the approach side of low energy doors.
  • (select Eco-Low-Energy kit and color before adding to cart)
