Product Description

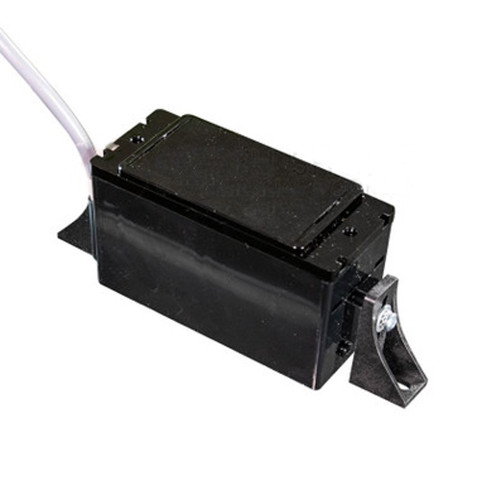

North Shore Commercial Door now carries the BEA Quadscan II Custom Series active infrared safety sensor. The 10QUADSCANIICUSTOM is a door mounted presence detecting safety sensor for use with pedestrian automatic swinging doors. The Quadscan II Custom Series safety sensor is externally monitored* for improved safety. It has an adjustable mounting height from 43 to 118 inches and four AIR safety spots provide approximately 16 inches of safety protection width per sensor at 78 inches mounting height. The Quadscan II Custom Series also has independent safety side and approach side output relays. Four DIP switches for the door side provide service friendly adjustments with AIR frequency, background reflectivity and uncovered zone height.

10QUADSCANIICUSTOM is easy to install and setup without a remote control. The Quadscan II Custom Series meets ANSI standard for swing door standalone door-mounted safety and wiring is easy with master/slave configuration. Universal module for both leading edge and hinge side protection.

The Quadscan II Custom Series/10QUADSCANIICUSTOM includes: 2 CUSTOM LENGTH Modules

Product Highlights:

  • Product Number: 10QUADSCANIICUSTOM
  • Door mounted presence detector
  • Active infrared
  • Standalone safety sensor
  • External monitoring* for improved system safety
  • For use with pedestrian automatic swinging doors
  • Adjustable mounting height from 43 in. to 118 in.
  • Independent relays for approach and safety side
  • Four DIP switches for user friendly adjustments
  • Master/slave configuration for easy wiring
  • Easy installation and set up without the need for a remote control
  • Universal module for both leading edge and hinge side protection
  • Meets ANSI standard for swing door standalone door-mounted safety

Technical Information:

  • Technology: Active infrared with background suppression
  • Detection Field: 15 3/4 in. (W) x 2 3/4 in. (D) (at 6 1/2 ft. mounting height; 4 spots active)
  • Mounting Height: 3 ft. 7 in. (1.1m) to 9 ft. 10 in. (3m)
  • Range Adjustment: Mechanical range adjustment screw
  • Reaction Time: 64 ms (typ)
  • Supply Voltage: 12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10%
  • Max Current Consumption: 65 mA @ 24 V AC/75 mA @ 24 V DC (EACH MODULE)
  • Output: 2 relays (free of potential contact)
    • Max. Contact Voltage: 42 V AC/DC
    • Max. Contact Current: 1 A (resistive)
    • Max. Switching Power: 30 W (DC) / 60 VA (AC)
  • Input: 1 optocoupler (free of potential contact)
    • Max. Contact Voltage: 30 V
    • Voltage Threshold:
      • high: >10 V DC
      • low: <1 V DC)
  • Max. Number of Modules: 4 (up to 6 if 24 V DC)
  • Reflectivity: min 5% at IR-wavelength of 850 nm
  • Degree of Protection: IP53
  • Temperature Range: -13˚F to  + 131˚F (-25˚C to +55˚C); 0-95% relative humidity, non-condensing
  • Norm Conformity:
    • EMC 2004/108/EC; MD 2006/42/EC
    • EN ISO 13849-1:2008 Performance Level <<c>> CAT 2; EN 12978

Door Compatibility:

  • Swinging
  • Revolving
  • Low Energy

*External monitoring requires a monitoring capable door control
