Chamberlain PD432D PD432DM Screw Drive
Be sure to use our new Interactive Exploded Parts View to find the item you need! Using it is easy, just follow the directions below!
USING THE INTERACTIVE EXPLODED PARTS VIEW
- Place your mouse over the number or letter representing the product you need. Product information should pop up.
- Click BUY NOW and you will be redirected to the product you need and can add item to cart.
- Use the table to find the item you need.
- Click the red text and it will take you to the product page.

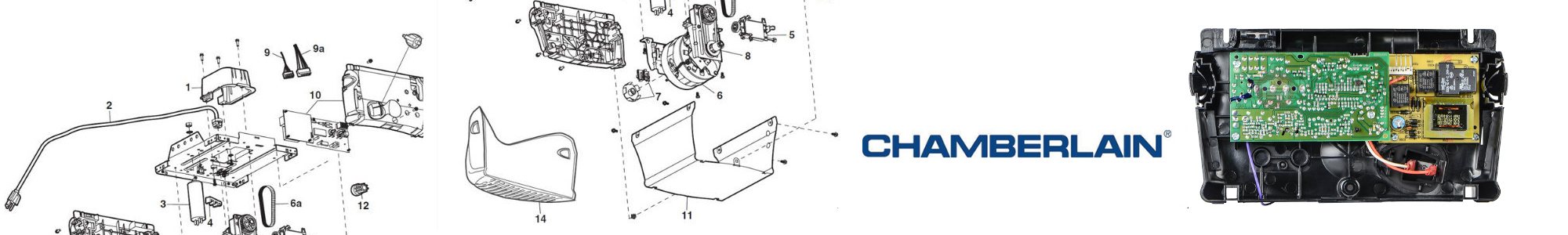

The Chamberlain PD432D and PD432DM garage door opener replacement parts you need are at North Shore Commercial Door. With our illustrated parts diagram, you can see what parts you want and where they fit. Just click on the number next to the part or on our list below the diagram to learn more and place your order. Our American family-owned company maintains a large inventory of replacement parts for your Chamberlain 1/2-horsepower power drive screw drive garage door operator. That means we can process and ship most orders the next business day.
Find Chamberlain-compatible LiftMaster drive shaft covers, replacement line cords, terminal blocks with screws and limit switch assemblies. Our collection of Chamberlain model PD432D and PD432DM screw drive garage door opener parts include replacement motor drive assemblies, drive belts, sensor kits, wire harnesses (low-voltage and high-voltage) and worm gear and retainers. Replace that faulty logic board with our compatible receiver logic board assembly. With the right replacement parts, you can avoid having to invest in a new garage door opener.
| Key | Part # | Description |
|---|---|---|
| 1 | 31C568 | Liftmaster 31C568 Drive Shaft Cover |
| 2 | 41B4245 | Liftmaster 41B4245 Line Cord |
| 3 | 30B620 | Liftmaster 30B620 1/2hp Capacitor |
| 4 | 41A3150 | Liftmaster 41A3150 Terminal block w/ screws |
| 5 | 41D4671 | Liftmaster 41D4671 Limit Switch Assembly |
| 6 | 41A6241 | Liftmaster 41A6241 Motor Drive Assembly |
| 6A | 20B21-1 | Liftmaster 20B21-1 Drive Belt |
| 7 | 41C4672 | Liftmaster 41C4672 Screw Drive RPM Sensor Kit |
| 8 | 41A4837-1 | Liftmaster 41A4837-1 Worm Gear and Retainer |
| 9 | 41A6335 | Liftmaster 41A6335 Low Voltage Wire Harness |
| 9A | 41A6334 | Liftmaster 41A6334 High Voltage Wire Harness |
| 10 | 41AS050R2 | LiftMaster 41AS050R2 Receiver logic board assembly (315 MHz) |
| 11 | 41A5525-53 | Liftmaster 41A5525-53 Cover |
| 12 | 41C22-1 | Liftmaster 41C22-1 Drive Coupling Hub |
| 13 | 175B88 | Liftmaster 175B88 LIGHT SOCKET |
| 14 | 108D79 | Liftmaster 108D79 Garage Door Opener Lens Cover |
