Chamberlain PD762EV Chain Drive

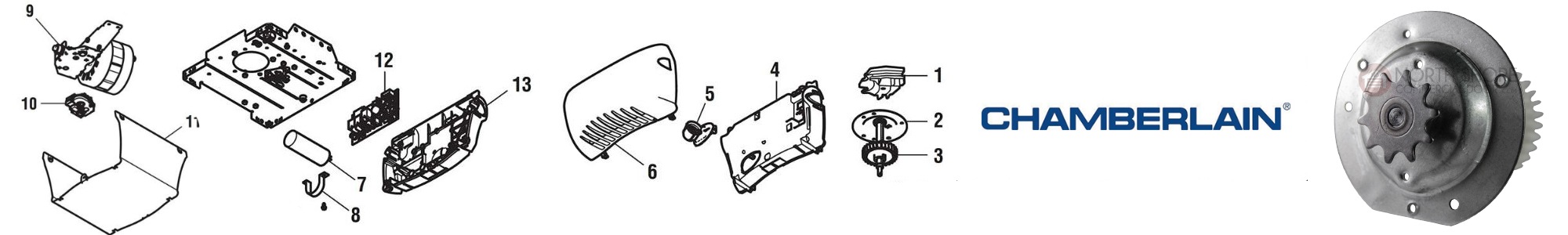

Be sure to use our new Interactive Exploded Parts View to find the item you need! Using it is easy, just follow the directions below!
USING THE INTERACTIVE EXPLODED PARTS VIEW
- Place your mouse over the number or letter representing the product you need. Product information should pop up.
- Click BUY NOW and you will be redirected to the product you need and can add item to cart.
- Use the table to find the item you need.
- Click the red text and it will take you to the product page.
We make DIY replacement of parts for your MyQ-enabled Chamberlain PD762EV chain drive garage door opener easy at North Shore Commercial Door. We have click-and-order illustrated diagrams that will allow you to choose just the parts you need. We offer low prices and superior customer service from our in-house experts on garage door opener parts and compatibility. We have PD762EV-compatible chain spreader sets, gear, capacitors and other parts that will work with your 3/4-horsepower Chamberlain chain drive garage door operator.
Replace your gear and sprocket assembly fast with our easy-install LiftMaster brand replacement parts designed to work with your PD762EV chain drive Chamberlain garage door opener. Keep in mind that you should disconnect all electric and battery power to your garage door opener before beginning repairs. To replace your garage door operator's travel module with our compatible unit, remove the light lens and cover, and then remove the wire harness and retainer clip that goes with your travel module. You can use the tip of your screwdriver to loosen the travel module from the bracket, remove it and replace it. Our Chamberlain-compatible LiftMaster 045ACT is a Security+ 2.0 receiver logic board replacement kit that is compatible with garage door operator models made after 2011.
| Key | Part # | Description |
|---|---|---|
| 1 | 41A5615 | Liftmaster Chain Spreader Kit |
| 2 | 41A5585 | LiftMaster 41A5585 Gear and Sprocket Assembly |
| 3 | 41A2817 | Chamberlain LiftMaster 41A2817 Chain Drive Garage Door Opener Gear Kit |
| 4 | 041D8129 | LiftMaster 041D8129 Front end panel w/ all labels |
| 5 | 175C0279 | [Not Available] Light socket |
| 6 | 108D79 | Liftmaster 108D79 Lens Cover |
| 7 | 30B532 | Liftmaster 30B532 Capacitor - 1/2 HP |
| 8 | 12A373 | #9 Liftmaster 12A373 Capacitor bracket |
| 9 | 041A7766 | [Not Available] Universal motor |
| 10 | 41D7742-5 | Liftmaster 041D7742-5 Travel Module |
| 11 | 041D8155 | [Not Available] Cover |
| 12 | 045ACT | Liftmaster 045ACT Logic board |
| 13 | 041D8128 | [Not Available] Logic board end panel |
